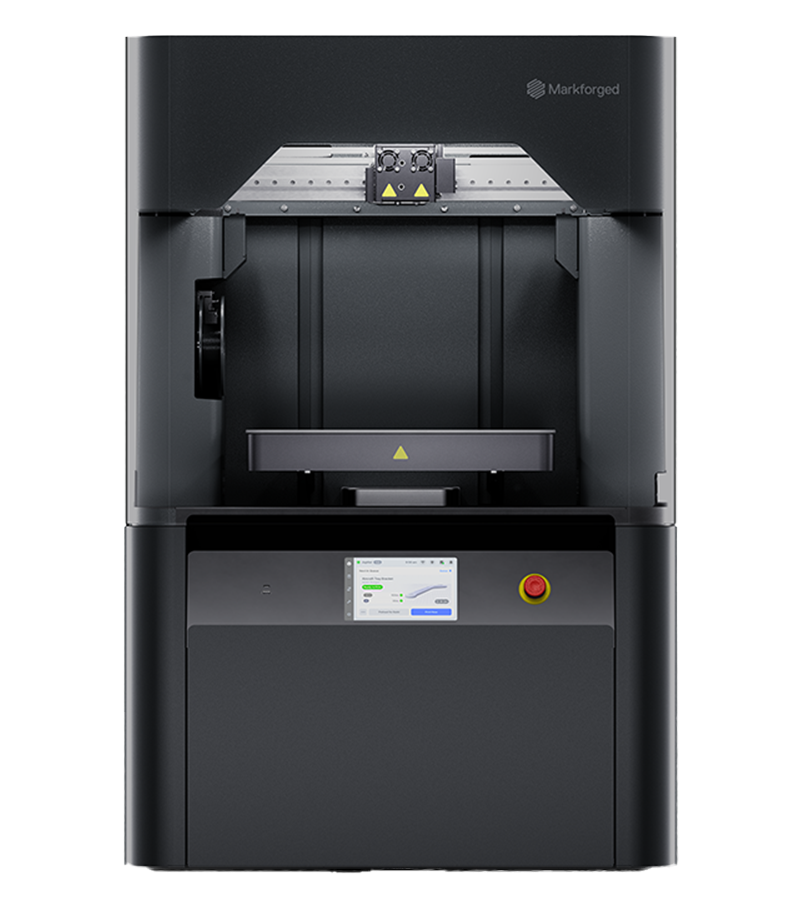

Markforged FX10
Specs
Technology: Fused Filament Fabrication (FFF), Continuous fiber deposition
Material Type: Composite Thermoplastics
Material Format: Polymer Filament, Continuous fibers
Material Names:
- Onyx ($3.86 / in³)
- Carbon Fiber ($49 / in³)
Build Volume: 14.7 x 11.8 x 11.8 in (375 x 300 x 300 mm)
Price: $99,000
Resolution: 125µm to 250µm layer thickness
Link: FX10, datasheet
Benefits for Jacobs
- Faster print times than the X7
- Automatic calibration and other intelligent features mean less chances for operator error
- Capacity to hold 4x more material
- Designed for expanded features over time
- Larger build volume - very similar to our Fortus 380mc
Downsides
- While it would provide a larger build volume that compares to the Fortus, the Onyx material is about twice the cost of ABS
- Currently less materials are available, but it's likely they'll roll out the others (Fiberglass, TPU, etc.) over time
Description
Built on the success of the Markforged X7, its sole purpose is to deliver strong, accurate parts every print. FX10 features a new modular architecture that’s designed for upgradability and print head-mounted optical sensors that can verify dimensional accuracy of parts and assess device health and performance. It utilizes automatic calibration and material changeover, yielding a simple, low-touch user experience that mitigates the need for dedicated operators.
The FX10 is designed with a core XY belt system to increase rigidity and allow for faster print times than the X7. The extruder tips are designed to last far longer. The parts are printed on thin sheets which are held on a heated aluminum vacuum bed.
