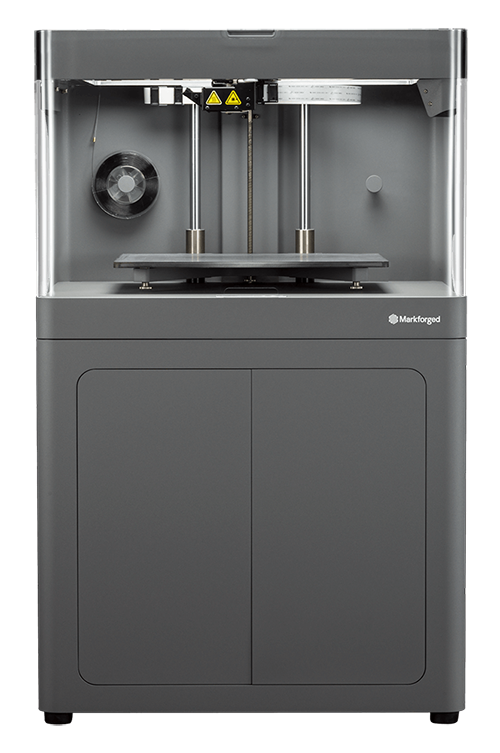

Markforged X7

Specs

Technology: Continuous fiber deposition
Materials: Polymers, composites
Material Names:

• Plastics:
  • Onyx (nylon + carbon fiber, $3.86 / in³) (Technical Data)
  • Smooth TPU ($3.48 / in³)
  • Precise PLA ($1.37 / in³)
  • Nylon ($3.46 / in³)
  • Onyx FR (flame resistant Onyx, $4.71 / in³)
  • Onyx ESD (electrostatic dissipative Onyx)
• Continuous fibers:
  • Carbon Fiber ($49 / in³)
  • Fiberglass ($24 / in³)
  • Aramid Fiber (Kevlar®) ($32 / in³)
  • HSHT Fiberglass (thermally resistant)

Material Format: Filament
Build Volume: 12.99 x 10.6 x 7.8 in (330 × 270 × 200 mm)
Price: $70,000
Links: bCourses, Markforged

Benefits to Advanced Lab

• Adding another printer would ease the demand on our existing Markforged X7

Reviews

Markforged X7 review

Techniques

• Designing for Printing Part 1: Unit Tests and Tolerances
• Designing for 3D printing Part 3: Decreasing Print time - orientation, limiting overhands, splitting parts
• Embedding components in Markforged printed parts
• Adhering co-part assemblies
• Bonding Markforged Plastic Parts to Other Materials

Adhesives for bonding Onyx parts

• Loctite 401 (Onyx to Onyx)
• Scotch-Weld DP100 (for bonding Onyx to other materials - source)
• Scotch-Weld DP100Plus
• Scotch-Weld DP420

Humidity Protection

Monitoring

For monitoring humidiy of the plastic to ensure good extrusion. Humidity causes extruder clogs.

• Humidity monitor and alarm
• Hygrometer (cheap and simple)

Storage

• Pelican Air cases - watertight
• Pelican Vault cases - "weather resistant"

Maintenance

The Maintenance Schedule Utility tracks consumable lifetimes and notifies you when components are due for maintenance or replacement. Replacing consumables is simple. The printer itself gets a step-by-step instructions and the guides are available in the Markforged Support Portal.

Consumables:

• plastic nozzle
• plastic Bowden tube
• plastic feed tube
• fiber nozzle
• fiber Bowden tube
• fiber feed tube

Calibrations:

• Belt tension (82Hz–85Hz when plucked, measured using a frequency tuner app like PanoTuner Lite)
• XY calibration (performed with a reference bed)

Third Party Materials

• Obsidian PA6+Carbon Fiber - a third party nylon-carbon fiber composite filament.
