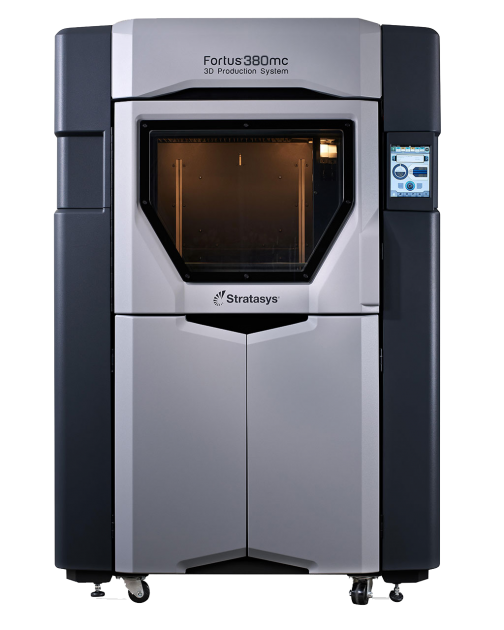

Stratasys Fortus 380mc

Specs

Technology: Fused Filament Fabrication (FFF)
Material Type: Thermoplastics
Material Format: Filament spool
Material Names:

• ABS-M30 (technical data),
• ABS-M30i (technical data)
• Polycarbonate (technical data)
• PC-ABS (technical data)
• Nylon 12 (technical data)
  Material Cost:
  ABS: $2.46 / cubic inch
  Support: $4.93 / cubic inch
  Build Volume: 12 x 14 x 12 in (355 × 305 × 305 mm)
  Price: $60,000
  Resolution: .005 - .013 in
  Link: Stratasys Fortus 380mc, bCourses material
  Alternative Material Sources: Argyle Materials

Description

The Fortus can print a handful of different filament plastics (ABS, polycarbonate, PC-ABS blend, etc.). It is accurate and reliable and is the largest print volume we have (12 x 14 x 12 inches). It does have its kinks but is still operational and I hope it gives us a few more years. It’s generally a hardy machine.

Reviews

Fortus 380mc review

Safety

• Sensors (Reddit)
  • Amphenol SGX PS1-VOC-1000-MOD VOC sensor
  • Sensirion SPS30 Particulate Matter sensor
  • Voxel Bento Box added inside 3D printer enclosure

Techniques Related

See Post-processing 3D printed parts

Adhesives to use with ABS parts

• Cyanoacrylate (CA) glues
• Epoxies
• Silicone Glues

Images
