Stratasys Fortus 450mc

Description

This industrial 3D printer can print a range of materials and can build much larger parts than most printers. Being the larger version of the Stratasys Fortus 380mc we already have, it would expand our ability to print more materials and larger parts. It is especially useful for making durable prototypes, jigs, molds, and enclosures.

Specs

Technology: Fused Filament Fabrication (FFF)
Material Type: Thermoplastics
Material Format: Filament**
Material Names:

• PLA
• ABS-M30
• ABS-M30i
• ASA
• Antero 800NA (PEKK-based)
• Antero 840CN03 (PEKK-based ESD thermoplastic)
• Nylon 12 and Nylon 12CF
• Polycarbonate (PC)
• PC-ABS (blend)
• PC-ISO (biocompatible PC)
• ULTEM 9085 resin
• ULTEM 1010 resin
• Kimya PC-FR (Flame retardant polycarbonate thermoplastic, might be an "addon" material with paid license?)
• ST-130 (sacrificial dissolvable material for making tubes, manifolds, etc.)
  Material Cost: ABS is $1.95/in³
  Build Volume: 16 x 14 x 16in (406 × 355 × 406 mm)
  Price: $149,000
  Resolution: 0.127 – 0.330 mm (0.005″–0.013″)
  Links:
• Stratasys
• more information
• brochure
  Third Party Sources for Filament:
• Argyle Materials

Benefits to Advanced Lab

• Expand our ability for larger format printing
• Add advanced material options to Jacobs
• Replaces the aging Fortus with something familiar to us
• Well engineered, reliable

Cons

• Expensive to buy and support

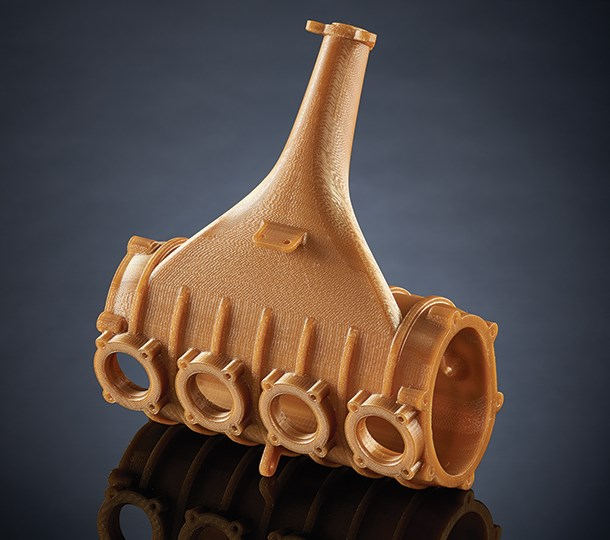

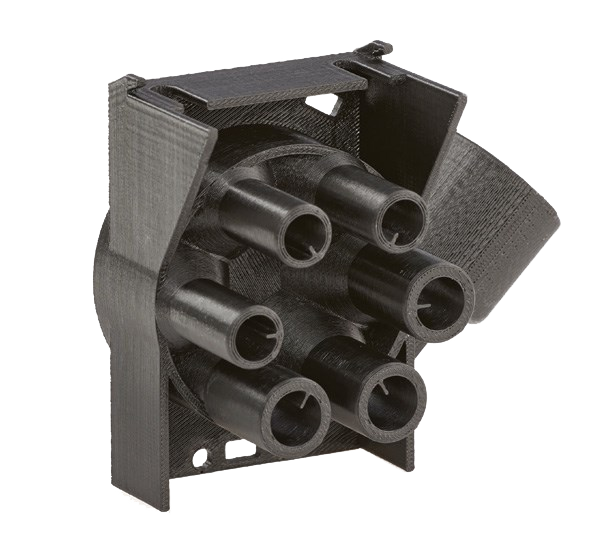

Images

Reviews

• Info (Aniwaa)
