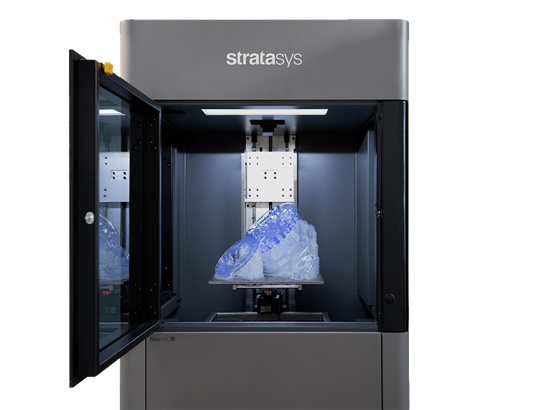

Stratasys Neo

Specs

Technology: Stereolithography (UV laser beam, SLA)
Material Type: Photopolymer resins (355 nm)
Material Format: Resin vat
Material Names: Somos® portfolio (e.g., WaterShed XC+, PerFORM, PerFORM Reflect), plus any commercially available 355 nm SLA resins
Build Volume:

• Neo450 (e/s): 450 × 450 × 400 mm
• Neo800: 800 × 800 × 600 mm
  Price: Upon request (enterprise/industrial pricing) {index=4}
  Resolution:
• Beam size & focus:
  • Neo450s: 80–750 µm (dynamic & variable)
  • Neo450e: ~250 µm (dynamic)
  • Neo800: 150–600 µm (dynamic & variable)
• Layer resolution: 50–200 µm
• Feature size: down to ~0.15 mm (X/Y)
  Links: Stratasys Neo

Description

The Stratasys Neo series delivers industrial-grade SLA performance with exceptional reliability, precision, and open-material flexibility. Designed by engineers for engineers, the Neo lineup addresses historical pain points of SLA such as limited throughput, unreliable service, and proprietary materials. The Neo printers boast smoother sidewalls, high repeatability, and streamlined workflows with minimal post-processing.

• Neo450 Series (Neo450e & Neo450s): Compact yet robust systems suited for small- to mid-sized prototypes, tooling, and master patterns. The Neo450s offers HD and SD modes and prints up to ~40% faster than the economy-focused Neo450e, while maintaining open-resin compatibility and tight accuracy (±0.1% or ±0.1 mm for dimensions over 100 mm).

• Neo800 / Neo800+: Large-format SLA workhorses capable of handling full-scale tooling and large prototyping in aerospace, automotive, and design studies. The Neo800+ adds ScanControl+™ — a variable focus laser/scan system delivering up to 50% faster builds, better reliability (e.g., collision detection, environment monitoring), and optimized for high-speed resins like Somos WaterShed XC+.

All Neo printers use the intuitive Titanium™ control and build-prep software, and support GrabCAD integration for seamless job submission. Their open resin system works with the full range of 355 nm SLA materials, including Stratasys-certified Somos® resins and broader industry offerings — giving the user freedom and efficiency.
