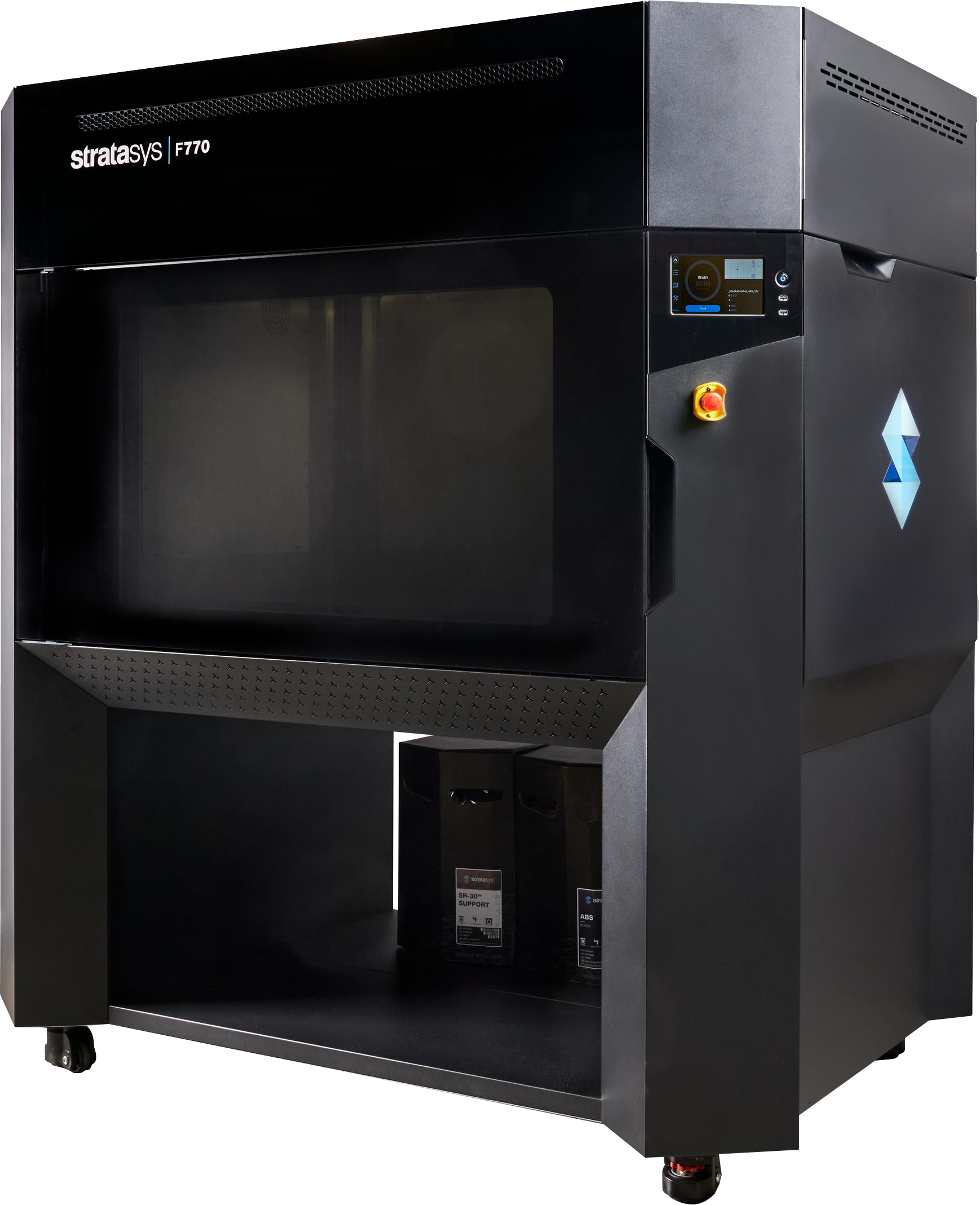

Stratasys F770
Specs
- Technology: Fused Filament Fabrication (FFF)
- Material Type: Thermoplastics
- Material Format: Filament
- Material Names:
- ABS-M30
- ASA
- (others depending on certification packages)
- Build Volume: 372 × 610 × 600 mm (14.6 × 24 × 24 in)
- Price: ~$104,000 ($140,000 USD bundled)
- Chamber: Heated, fully enclosed
- Resolution: 0.178 / 0.254 / 0.330 mm
- Features:
- Large-format industrial FDM system
- Soluble support material for complex geometries
- 14-day unattended run capability
- GrabCAD Print and Insight software compatibility
Description
The Stratasys F770, released in 2021, is a large-format industrial FDM printer designed for prototyping and production of oversized thermoplastic parts. With a massive meter-wide build volume, it is optimized for ABS and ASA and supports soluble supports for complex geometries. The F770’s fully enclosed heated chamber and extended run time make it ideal for manufacturing environments, though it requires external ventilation rather than onboard filtration.
