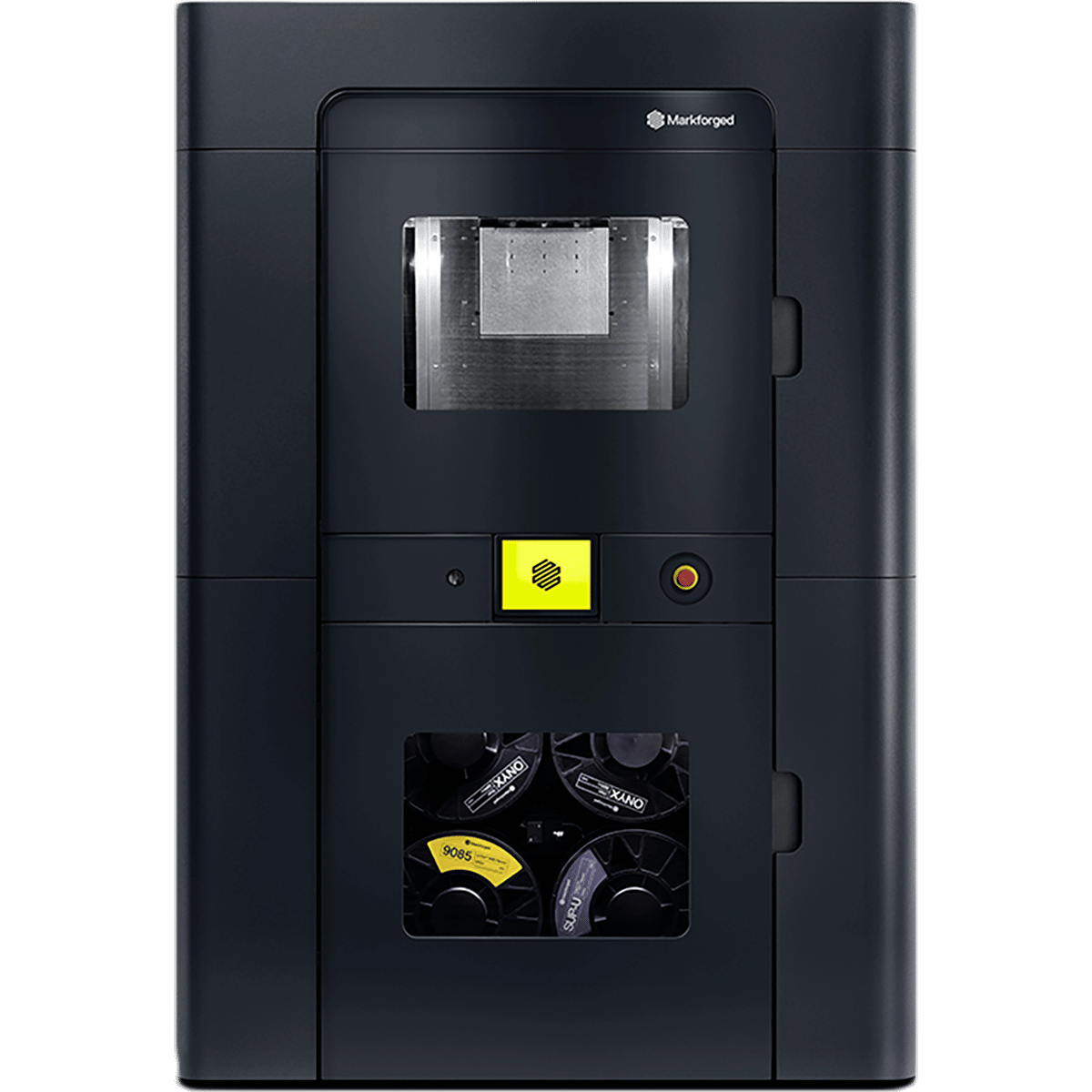

Markforged FX20
Specs
- Technology: Continuous fiber deposition
- Material Type: Composites, polymers
- Material_Format: Filament
- Material_Names:
- Plastics: ULTEM™ 9085 filament, Onyx, Onyx FR, Onyx ESD, Nylon White, Vega (PEKK-CF)
- Continuous Fibers: Carbon Fiber, Fiberglass, Aramid Fiber (Kevlar®), HSHT Fiberglass
- Build Volume:
- Single-nozzle builds: 20.6 x 15.7 x 15.7 in (525 x 400 x 400 mm)
- Multi-nozzle builds: 19.7 x 15.7 x 15.7 in (500 x 400 x 400 mm) for multi-nozzle builds
- Price: ~$120,000?
- Resolution: 50 μm minimum, 250 µm maximum
- Accuracy: +/- 125 µm or +/- 0.0015 mm per mm (whichever is greater)
- Link: Markforged FX20
Description
An ULTEM™ Filament capable large format 3D printer for big, strong, high temp parts. It has a direct-drive print head with three nozzles (two plastic, one fiber). System Details
Reviews
- Layer height:
- Accuracy:
- Weight: 530 kg (1170 lbs)
