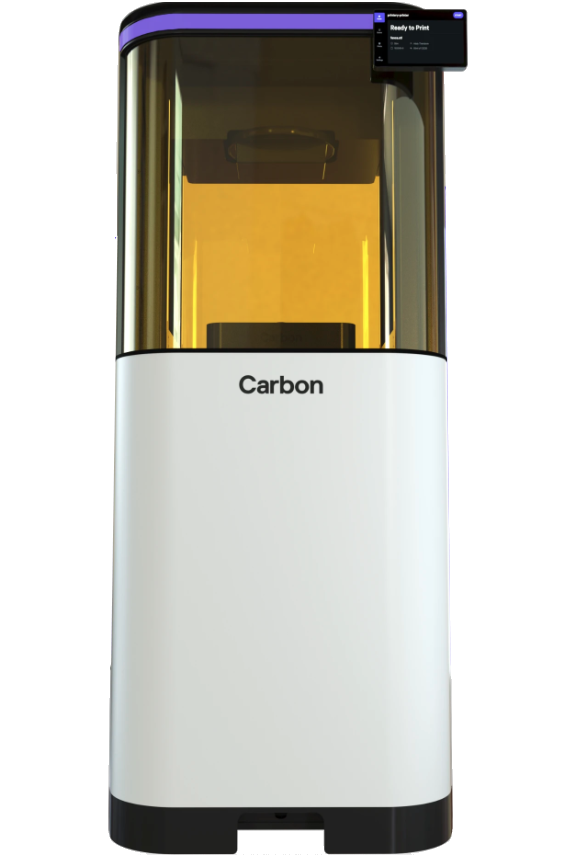

Carbon3D M3 and M3 Max

Specs

Technology: Stereolithography
Material Type: Photopolymer Resins
Material Format: Resin
Material Names:
The full catalog of materials can be found here.

• Rigid materials
• Elastomeric materials
• Dental materials
  Build Volume:
• M3: 7.4 x 4.6 x 12.8 in (189 x 118 x 326 mm)
• M3 Max: 12.1 x 6.4 x 12.0 in (307 x 163 x 305 mm)
  Price: ~$160,000
  Resolution:
• Z resolution: 25, 50 or 100 µm
• XY resolution: 75 µm
  Link: Carbon3D M3
  Software: Web based slicer included in subscription
  Pros:
• Excellent material choices
• Excellent support
• M3 Max has 4K projector, which means double the build area an

Cons:

• Expensive
• Resin management (pouring into tank) is manual, unlike the Form 3. This means more close contact with hazardous materials and more difficult to teach to a large number of students
• Subscription model (our M1 was a 3 year lease/subscription) - they do seem to offer variable pricing depending on output levels now

Description

The Carbon3D M3 printer, developed by Carbon Inc., is an advanced 3D printer utilizing Continuous Liquid Interface Production (CLIP) technology, which enables rapid and high-resolution 3D printing. Unlike traditional layer-by-layer printing methods, CLIP technology harnesses the power of light and oxygen to cure liquid resin into solid objects continuously. This approach allows for incredibly fast printing speeds, with some models capable of producing parts in minutes rather than hours. The Carbon3D M3 printer offers exceptional surface quality, intricate detail resolution, and a wide range of material options, including engineering-grade resins suitable for various industrial applications. Its innovative design and cutting-edge technology make it a top choice for industries such as automotive, aerospace, healthcare, and consumer goods, where speed, precision, and versatility are paramount.
