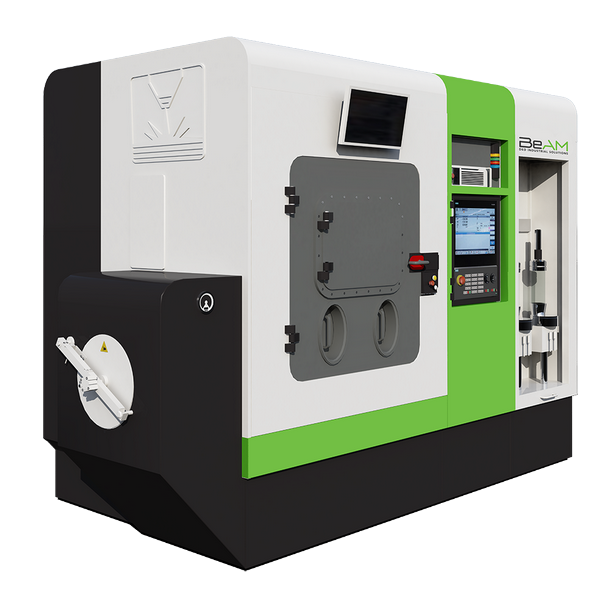

AddUp Modulo 400
Specs
Technology: Metal Directed Energy Deposition (DED)
Material Type: metal
Material Format: powders
Material Names:
- Ti64
- Stainless steel 316L
- Stainless steel 17-4PH
- Maraging steel 300
- H13
- CoCrWC
- CuAl
- Inconel 625
- Inconel 718
- Hastelloy X
- R&D possible for other alloys
Material Cost:
Build Volume: 25.5 x 15.75 x 15.75 in (650 x 400 x 400 mm)
Price: Quoted upon request
Resolution:
- The 10Vx deposition nozzle can deposit weld beads 0.8 to 1.2 mm wide, with an accuracy of 0.1 mm.
- The 24Vx deposition nozzle can deposit weld beads 2 to 2.4 mm wide, with an accuracy of 0.2 mm.
Link: Modulo 400
Requires: - Argon gas supply
Pros:
- 3-level filtration (pre-filter, HEPA, chemical filter) included
Cons:
- Machine would likely be unable to fit in most spaces
Description
The Modulo 400 machine is a DED additive manufacturing machine equipped with two nozzles of different sizes and power. The system includes the option to change tools and use a precision tool (10Vx nozzle) when needed and a lower quality tool (24Vx nozzle) when needed.
