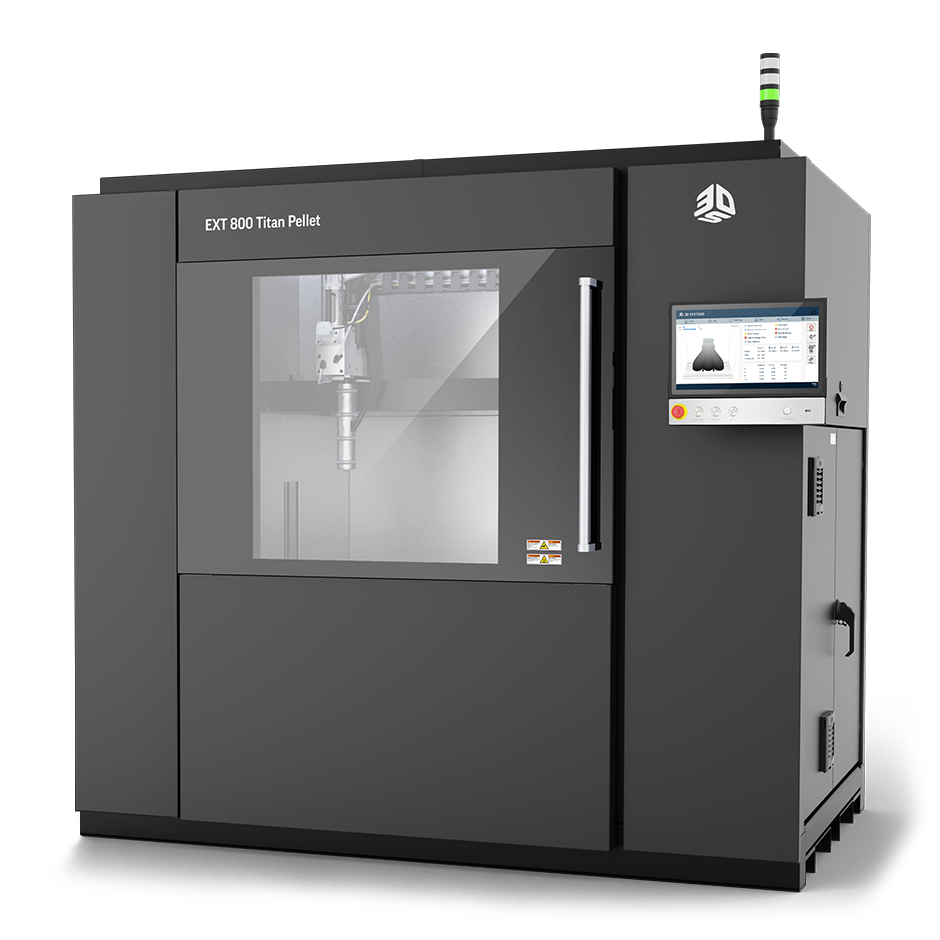

3D Systems EXT 800 Titan Pellet

Specs

Technology: Pellet Extrusion
Material Type: Thermoplastic
Material Format: Pellets
Material Names:

• Standard:
  • PLA
  • ABS
  • PETG
  • PP
  • ASA
• Flexible:
  • TPU
  • TPE
  • PEBA
  • TPC
• High Performance:
  • PC 20% CF & GF
  • Nylons up to 50% CF
  • PEI 20% CF & GF
  • PPS
  • PPSU
  • PEKK 30% CF & GF
    Build Volume: 800mm x 600mm x 800mm (31.5 x 23.6 x 31.5 in)
    Machine Dimensions: 2.13m x 1.4m x 1.92m (7' x 4.6' x 6.3')
    Price: ~$200000-$300000
    Resolution:
    Pellet Nozzle Diameters: 0.6–9.0 mm
    Links:
• EXT 800 Pellet
• Brochure
  Pros:
• Built-in Fume extraction/filtration
  Cons:
• Very industrial

Description

Standard features include welded steel frames, active bed and chamber heating, industrial CNC motion controllers, and servo motors on all axes. All systems come standard with a single high-speed, precision pellet extruder and some models may be configured with up to three toolheads including a second pellet extruder, filament extruders, and a milling spindle. Additional options include pellet dryers, fume extraction/filtration, and more.
